AC-2200

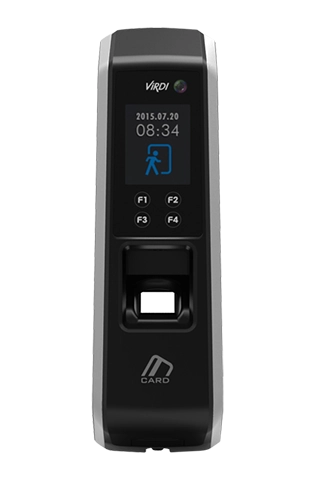

AC2200 is a rugged and high-performance fingerprint access control terminal built for outdoor environments. Engineered to deliver fast and accurate biometric authentication, it features a durable IP65-rated weatherproof and IK09-rated vandal-resistant housing. With advanced fingerprint recognition, multi-RFID card support, and versatile communication options, AC2200 is ideal for high-security applications in construction sites, industrial zones, warehouses, and outdoor entry points. Its sleek design combined with robust protection ensures reliable operation in even the harshest conditions Brochure Quote

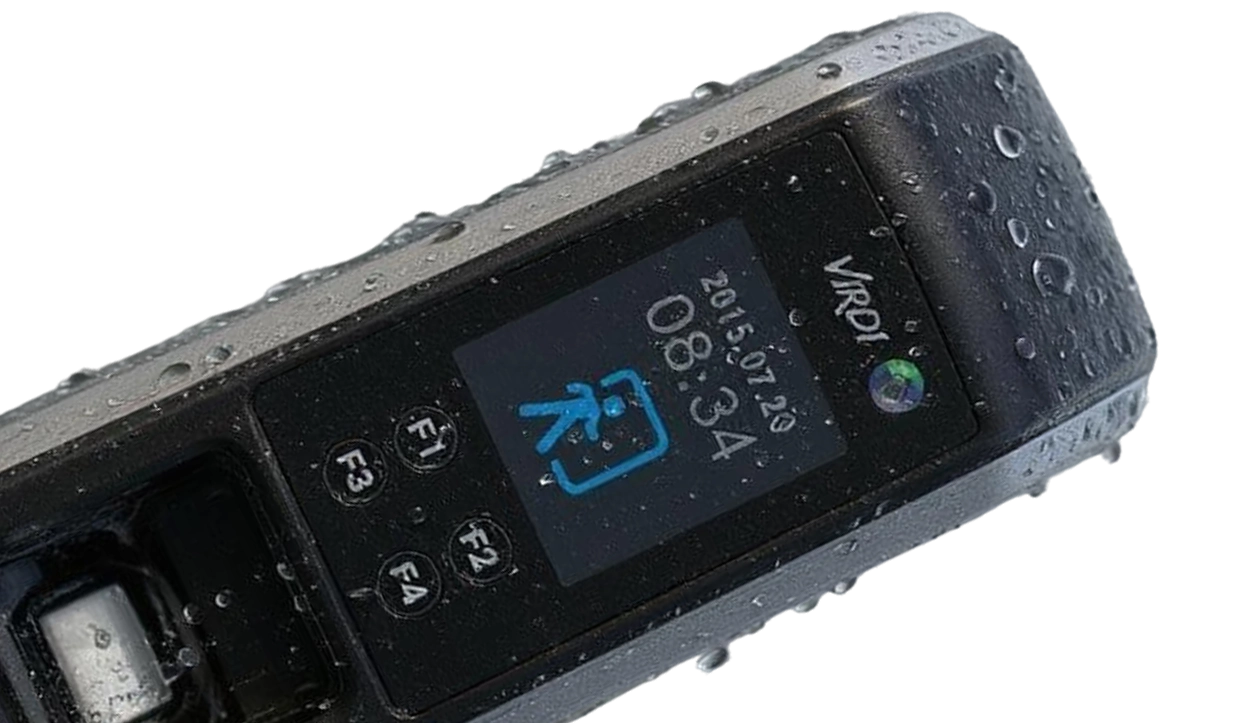

Rugged and Reliable with IP65 Rating
Built to withstand tough environments, the AC2200 features an IP65-rated housing that provides strong protection against dust and water. Ideal for outdoor installations, it ensures consistent performance even in challenging weather conditions.
Advanced Live Finger Detection
The AC2200 is equipped with Live Finger Detection technology, ensuring high security by accurately distinguishing between real fingerprints and fake ones made from paper, silicone, or other materials.
Advanced Digital Camera & 1.77" Color LCD
The AC2200 features a built-in VGA camera that captures high-quality image logs to enhance verification accuracy and security monitoring. Complementing this is a vibrant 1.77-inch color LCD display that provides clear, intuitive visual feedback, making device operation simple and user-friendly even in outdoor environments.
Product Specifications
Authentication Method Fingerprint / Card
Dust / Water Resistance IP65
Fingerprint (Max Users) 10,000 (1:1)
Fingerprint (Templates) 20,000 (1:1)
Logs 100,000
Image Logs 10,000
CPU ARM9, 400MHz
Memory 32MB NOR + 128MB NAND Flash, 64MB DDR RAM
Camera Built-in VGA Camera (640x480)
RFID Options 125KHz EM, 13.56MHz Smart Card, Felica, DESFire, HID Prox (optional), HID iClass (optional)
Communication TCP/IP, RS485, Wiegand In/Out, Bluetooth, USB (via UDL module)
